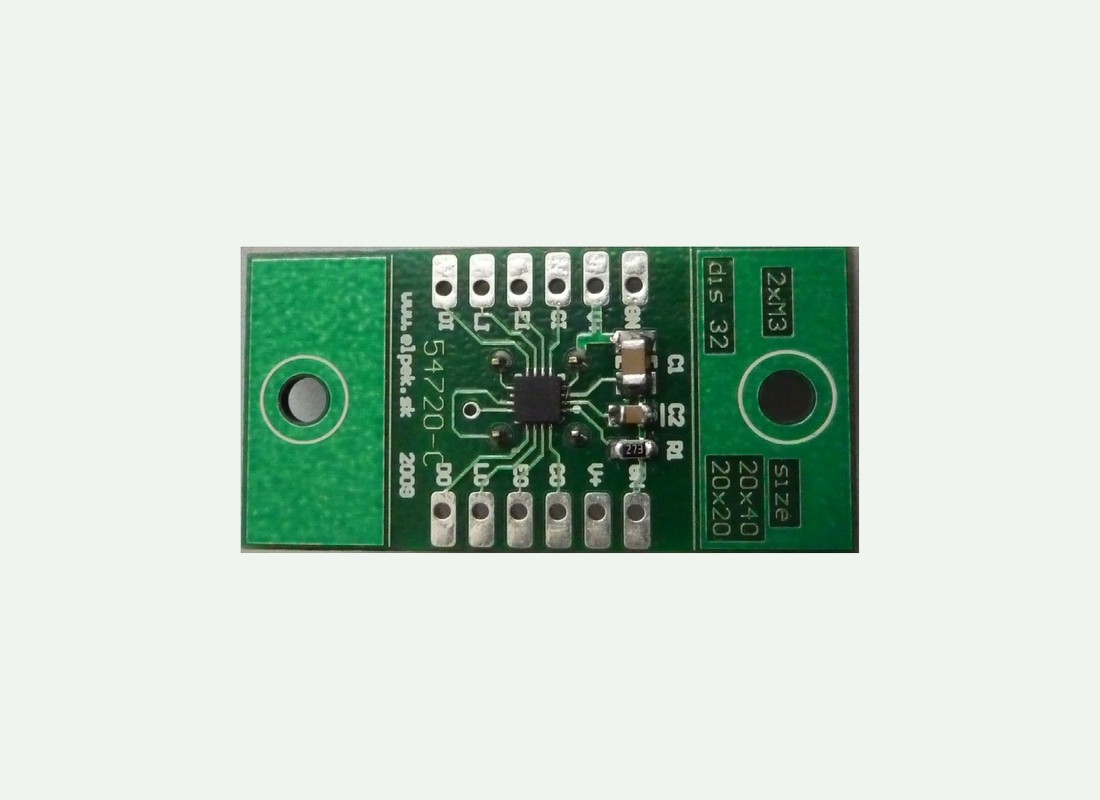

PIX-6281 Serial RGB Contant Current LED Driver Pixel Board
IC A6281 , used as a driver , a 3 -channel LED driver that has a wide range of output currents .
which gives applications the ability to display billions of colors in the RGB pixels. Maximum LED current is set by an external resistor .
Brightness Control RGB LED PWM control is performed at the output. The data of the PWM signal for each LED are stored in three
10 - bit registers . The maximum value of brightness for each LED can be set ( dot - corrected) to compensate for the mismatch brightness , aging of components,
and the effect of temperature .

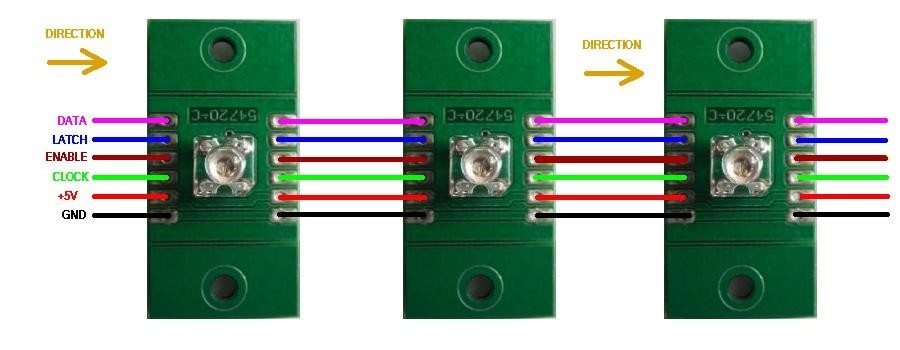

A large number of the A6281 modules can be serially connected and managed only four control signals ( clock , serial data , latch and output enable ) .
Each of these inputs is caching to manage other chip in the chain .
Specification

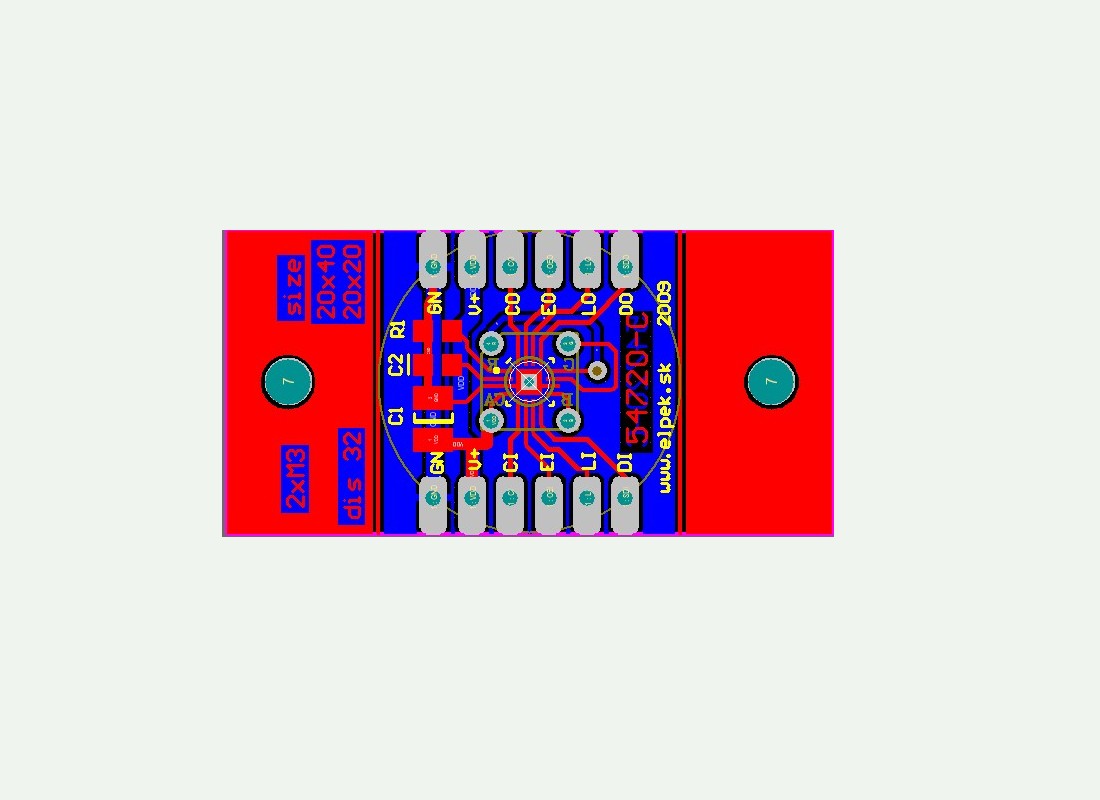

Controller | A6281 | 3-Channel Current LED Driver |
Power Supply | 5V DC | without protection |
Size | 41mm x 21mm x 10mm | assembled Piranha LED |
Pins Pitch | 2.54mm | IDC compatible |
Programming | 4 signals | clock, serial dáta, latch, output enable |
Board Shape | S0 | as shown |
Functionatity | Assembled, Tested | ready to use |
Produced | in Slovakia | ELPEK Electronics |
Application circuit
For more information click on | PIX-6281S Scheme |
---|
Ordering
Order Code: | PIX-6281S |
